Applies to: vehicles with plug-in hybrid drive

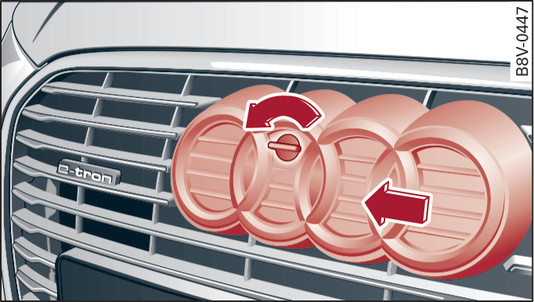

Fig. 143 Radiator grille: Opening the cover on the charging unit
Fig. 143 Radiator grille: Opening the cover on the charging unit
Fig. 144 Radiator grille: Charging connection cap
Fig. 144 Radiator grille: Charging connection cap
If necessary, unlock the vehicle link►.
Ensure that the selector lever is in position P and the vehicle status is not ready link►.
To open the cover on the charging unit, turn the catch to the vertical position Fig. 143►.
If necessary, push the cover carefully to the side.
Pull the cap off the charging connection Fig. 144►.
Connect the mains plug -B- or -C- to the power outlet Fig. ►.
Plug the vehicle charging connector -E- Fig. ► into the vehicle charging connection Fig. 144►. If no charging timer is set, the charging process will start automatically.
Note
Use a small brush and a solvent-free de-icer spray to remove ice and snow from the cover.
